Engine Production Test Facility
In-Process Tester
Short
Block Test System

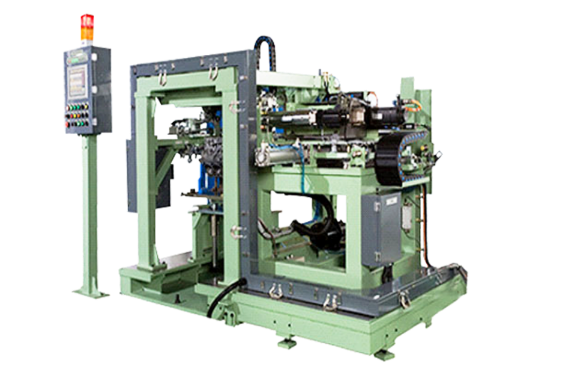

During the cold run state of engine short block assembly (including piston assembly), measures cranking friction torque, pressure and vibration above the oil passage, and crank shaft end play. Through wave form and data analysis, it verifies the misassembly, unassembly, or contamination of main bearing, con rod bearing, and thrust bearing, and checks the state of leaks and blockages in the oil gallery, aiming to reduce repair man hours and improve overall quality of the engine assembly line.
Test Items and Defect Detection Items
- 01Break Away Torque Test Checks for misassembly or contamination of main bearing, con rod bearing, and cylinder bearing surfaces
- 02Running Torque TestChecks for machining defects on crank shaft pin journal, main journal, and con rod
- 03Air Pressure Leak TestVerifies the assembly of main bearing, con rod, and the status of unprocessed or normal cylinder block oil gallery
- 04NVH TestChecks for the presence of con rod bearing and related vibration defects
- 05End-Play TestChecks for the unassembly of thrust bearing
Long Block
Leak Test System

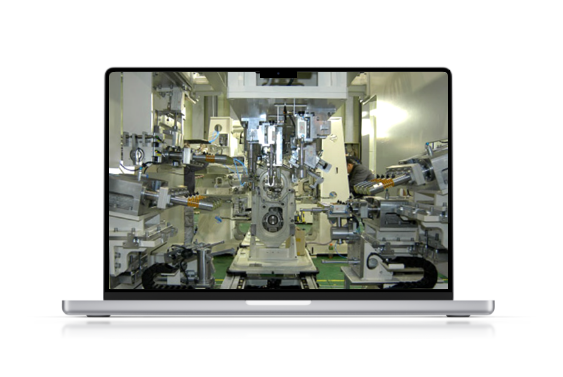

The Long Block Leak Test system measures pressures formed on the oil and
water lines in the engine long block state using a consistent air pressure supply.
This helps to pre-detect oil and water line leaks in the finished engine, thereby
reducing repair man hours and enhancing the overall quality of the engine.
Test Data Judgment & System Monitoring
- OK, NG part can be decided based on the leak value
- Monitoring of real time leak value
Spark Plug Gap Test Function
Test Items and Defect Detection Items
- 01Oil Line Leak Test Detects defects in the oil line of the long block state
- 02Water Line Leak Test Detects defects in the water line of the long block state
- 03Fuel Line Leak Test Detects defects in the fuel line of the long block state
