Production Test Facility for Electrified Components

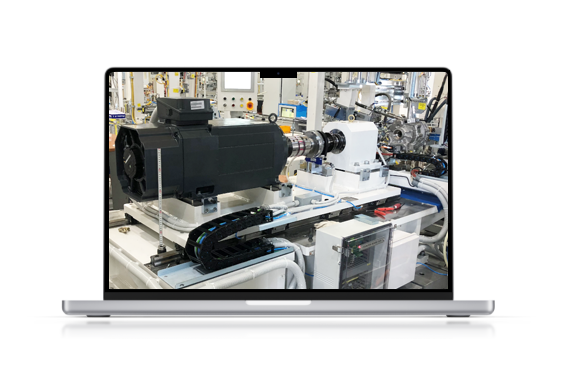

Motor EOL Dynamometer

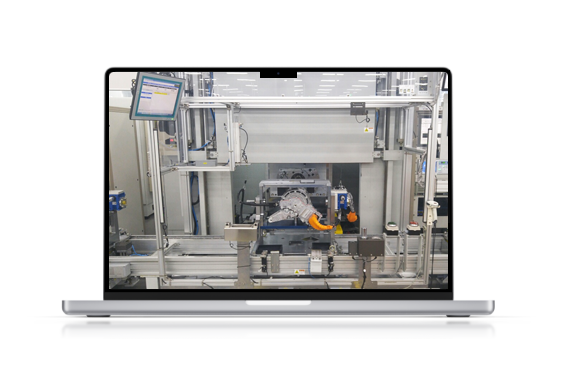

This equipment is installed at the final process of the motor assembly line and is used for
quality inspection of assembled products. It tests the motor's power performance and
assembly quality through NVH measurements. The actual testing process simulates the acceleration and
deceleration conditions as if the motor were mounted in a vehicle, creating an environment identical to that
of the vehicle with various peripherals included.
Test Purposes
- 01Electrical characteristics of the motor
- 02B-EMF tester
- 03Resolver initial angle measurement
- 04Drag torque test
- 05NVH test
- 06Efficiency test
- 07Assembly quality test
